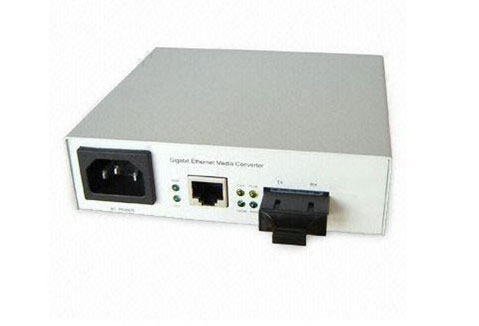

FB-1000MMC Series Media Converter is a 10/100/1000Base-TX fast Ethernet media converter with the function of auto negotiation and auto MDI/MDIX cable selection. This device translates transmission signals from a twisted-pair 10Base-T, 100Base-TX or 1000Base-T cable to 1000Base-FX fiber optic cable. With intelligent SNMP-based network management, user can monitor and configure the Copper Port and Optical Port of center chassis and remote standalone easily, and helps network operators quickly isolate problems without visiting multiple wiring closets, avoiding expensive downtime. Besides, user can control the bandwidth rate limiting.

Features

Fully compatible with IEEE802.3IEEE802.3u standards
Up to 100km distance on single mode optical port
Up to 9278 bytes package forwarded, transmit 802.1Q VLAN TAG protocol transparently
Optical port support Dual-strand, single-strand and CWDM etc.
Ethernet copper port supports 10/100/1000Mbps speed and half/full duplex mode Auto-negotiate
Ethernet copper port supports MDI/MDI-X auto sensing
The Number of Ethernet copper ports can extend to 4ports
Backup optical ports optional, SFP device optional
IEEE802.3af PoE (for PD) optional
Standalones and Chassis Modules Optional, Chassis support cascade link up to 4 numbers for management
Software Features
Support Console, WEB and SNMP management
View & configure the working status of local chassis and remote standalone device, including connection status, speed, half/full duplex mode, port status
Support rate limit with step of 8Mbps in 1000Mbps speed, 0.8Mbps in 100Mbps speed, and 0.08Mbps in 10Mbps speed
Support remote loop back function
Support online firmware upgraded
